- Haswing 12v 20lbs Bow Mount Electric Trolling Motor's solid bracket features a quick-release lever lock and reinforced composite material that resists flexing, warping, and UV damage.
- Get hands-on control of your motor with our Tilt Twist Tiller. It's ergonomic grip provides easy, responsive control of speed and steering.
- Easy to forward and reverse.The Prop delivers extra power to push throw heavy vegetation. Includes prop pin, nut and washer.
- Light weight(3.7 KG), simple operation
- Shaft length 23.6 inches/ 600mm; Cool, Quiet Power: Every Haswing trolling motor lower unit runs cool to extend trolling motor life, and stays quiet.
Product Description
- The W20 features a durable 12 volt motor offering 20 Lbs of thrust. It features 2 forward and 2 reverse speeds.
- At just 7.94 Lbs it is very light, easily portable and very compact thanks to its collapsible tiller handle.
- Depth height is easily adjustable, so you can motor in virtually and depth of water.
- The tiller handle adjusts to different angles making it easy to stow and the motor also features an LED battery level indicator
- Suitable for both salt and fresh water use.

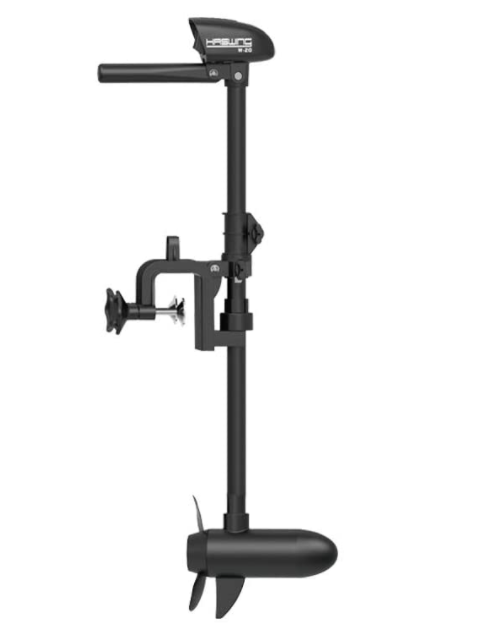

AQUOS Haswing Bow Mount 12V 20LBS Trolling Motor
12v 20lbs Transom Mount Electric Trolling Motor's solid bracket features a quick-release lever lock and reinforced composite material that resists flexing, warping and UV dam
Power Reader
- The LED Power Reader can let you check accurate available battery power anytime so that you can plan the fishing trip conveniently.
Folding Handle
- 110° Folding Handle give you more flexible helm in your fishing movement.
- Conveniently to control the boat while sitting or standing
Speed Control
- Press the big switch to move forward, press down to move reverse.
- Press the small switch upwards for fast speed, and downward for slow speed.
Angle Adjustment Bracket
- There are two angle adjustment positions of 0 degrees and 90 degrees.
- Easily be tilted in and out of the water when the depth or fishing condition change.
| Voltage — Rated/Max | DC 12V |
| Peak Thrust | 20 LBS |
| Prop Type/Size | 2 blade prop /5.9 inch diam. |
| Prop Speed at full power | Max.1200rpm underwater |
| Power — Rated / Max | 200 W |
| Amp — Rated / Max | 17 A |
| Shaft Length | 23.6 inch |
| Max boat length (Suggestion) | 9.84 ft |
