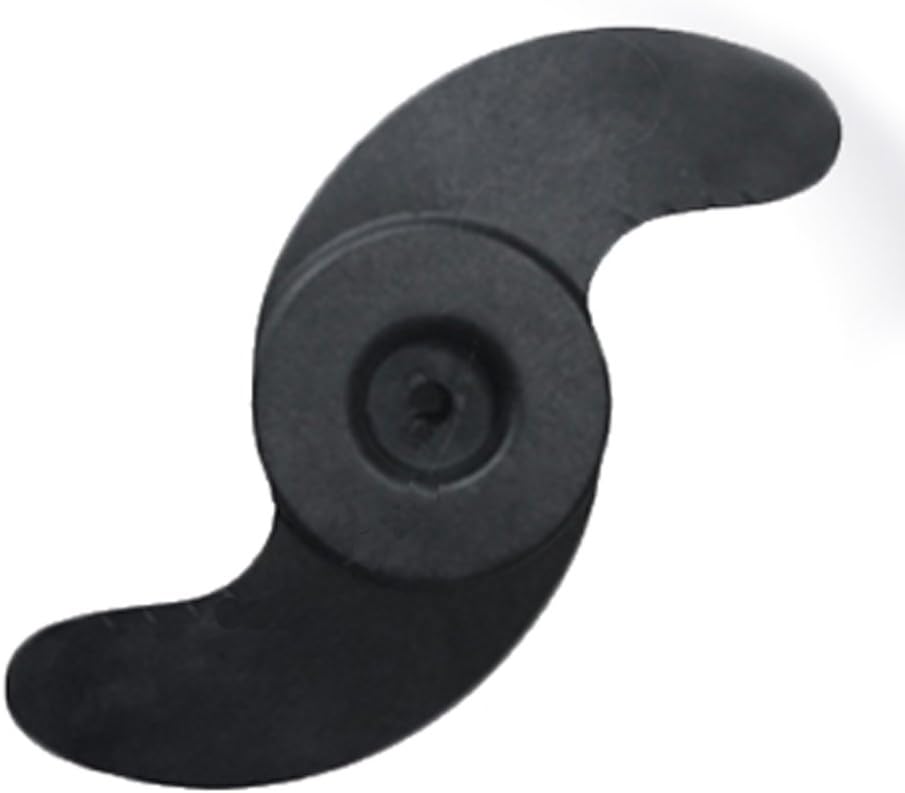

HASWING 80lbs 2-Blade Propeller Replacement for 50718D Bow Mount Trolling Motor
HASWING 80lbs 2-Blade Propeller Replacement for 50718D Bow Mount Trolling Motor
Out of stock
Couldn't load pickup availability
About this item
- Increases the area of the water covered
- Improves navigability &safety
- Ability to move the craft in windy conditions
- Greater power
- Increases speed
Product Description
- ncreases the area of the water covered
- Improves navigability &safety
- Ability to move the craft in windy conditions
- Greater power
- Increases speed

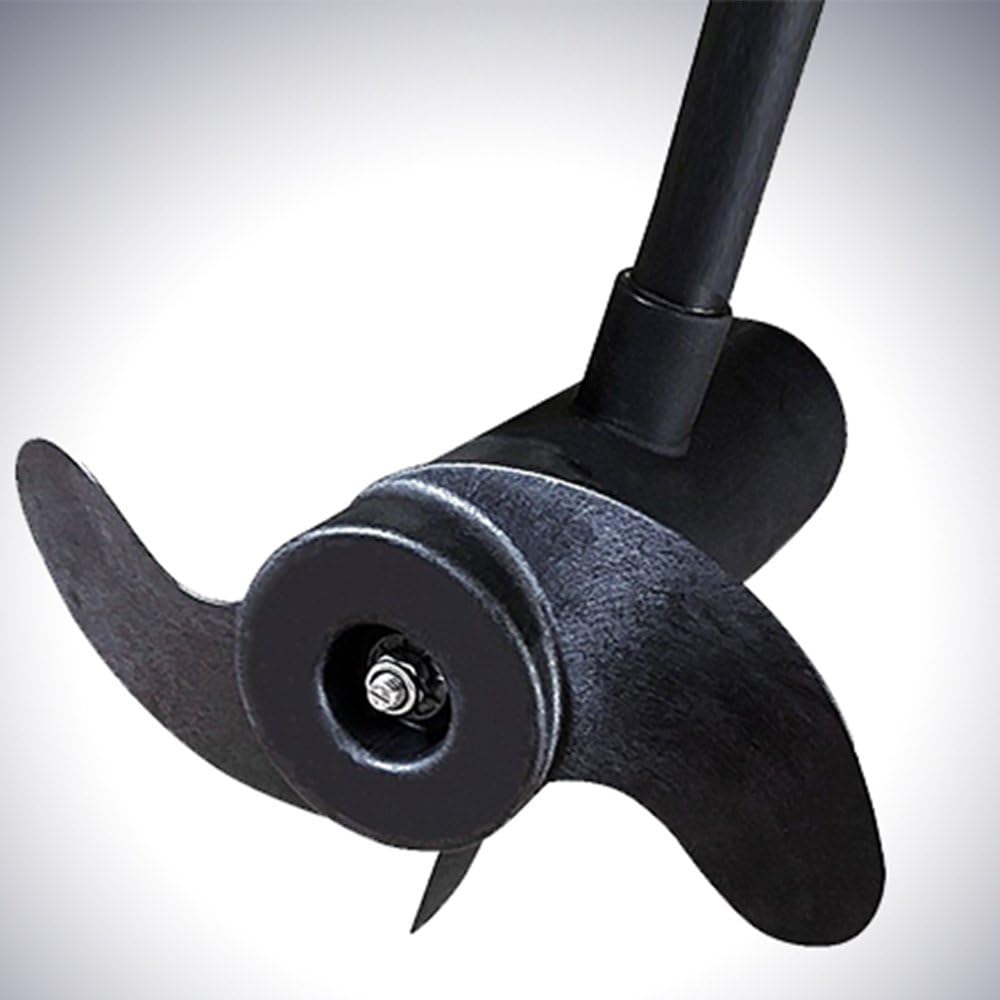

Haswing Cayman 24V 80LBS Bow mount / Transom Mount Motor Electric Trolling Motor.

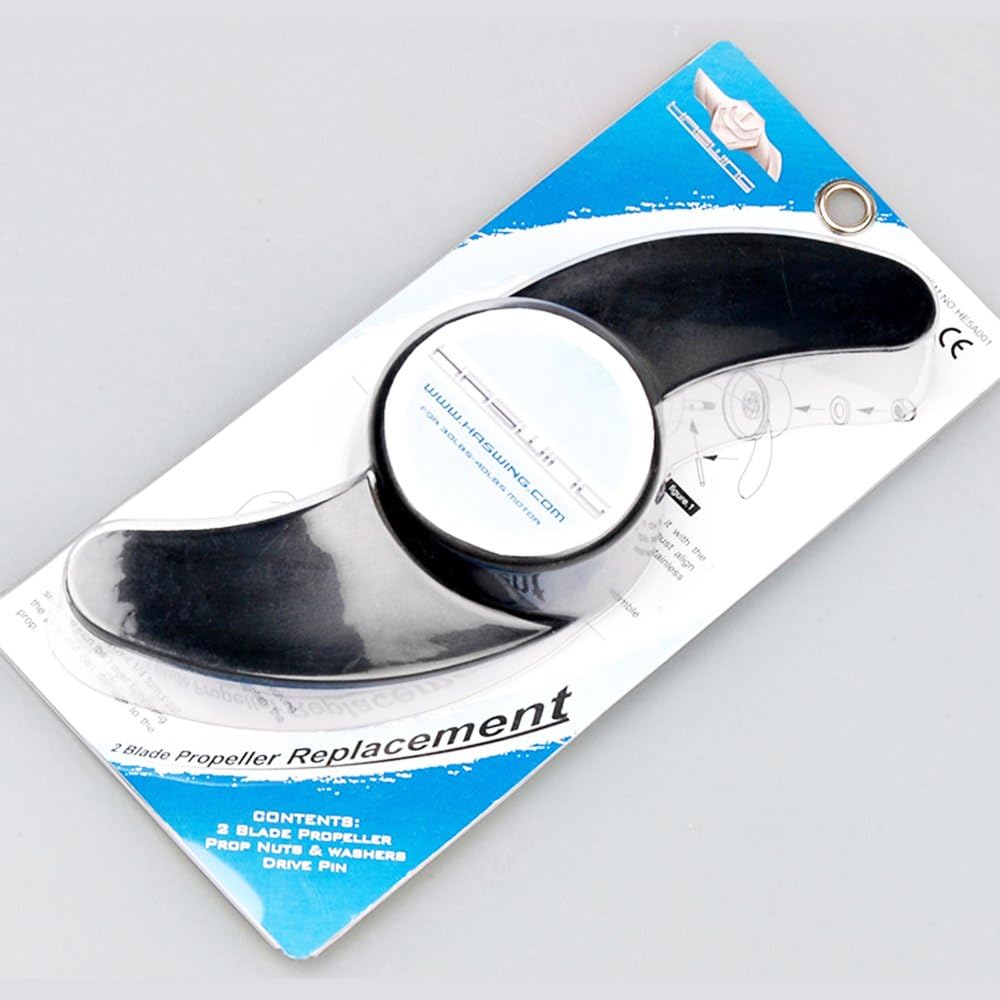

This prop will fit Haswing Cayman 24V 80LBS Bow mount / Transom Mount Motor Electric Trolling Motor. Propeller fabricated from shock resistant plastic. Kit comes with stainless steel nut,sacrificial anode replacement,stainless steel shaft lock,plastic spacer and plastic clutch disk.
Intall the drive pin into the shaft hole and align it with the propeller (The drive pin and the cross-shaped propeller groove must align horizontally). Install the Sacrificial Anode stainless washer and nut into the shaft (figure.7) when the propeller is assembled.
Hold the propeller to prevent it from revolving and use the propeller wrench to tighten the propeller nut.
Use the propeller wrench supplied or 7mm wrench for the installation.(The use of inappropriate tools may cause motor damage)
Tighten the prop nut 1/4 turn past snug.(30 inch lbs) over tightening the prop nut can damage to the prop.
